代 號

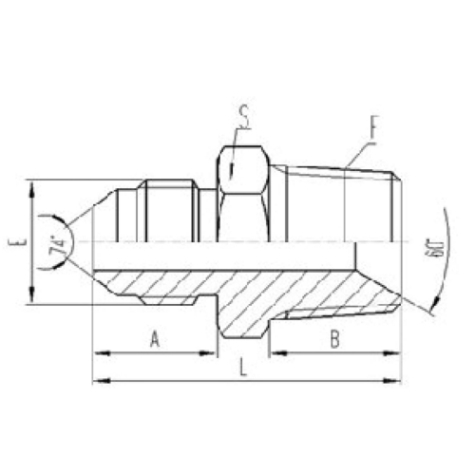

螺 紋（wén） THGEAD

尺 寸 DIMENSIONS

PAGT NO.

E

F

A

B

L

S

1QT-10-02SP

M10X1

R1/8"X28

12

10

28

12

1QT-14-04SP

M14X1.5

R1/4"X19

17

14.5

37.5

17

1QT-14-06SP

M14X1.5

R3/8"X19

17

15

38

17

1QT-16-04SP

M16X1.5

R1/4"X19

18

14.5

38.5

17

1QT-16-06SP

M16X1.5

R3/8"X19

18

15

39

17

1QT-18-04SP

M18X1.5

R1/4"X19

18

14.5

38.5

19

1QT-18-06SP

M18X1.5

R3/8"X19

18

15

39

19

1QT-22-08SP

M22X1.5

R1/2"X14

19.5

20

47.5

24

1QT-27-08SP

M27X1.5

R1/2"X14

20

20

50

30

1QT-27-12SP

M27X1.5

R3/4"X14

20

20

50

30

1QT-30-12SP

M30X1.5

R3/4"X14

23

20

54

32

1QT-33-12SP

M33X2

R3/4"X14

26

20

57

36

1QT-36-16SP

M36X2

R1"X11

26

25.5

61.5

38

1QT-39-16SP

M39X2

R1"X11

26

25.5

64.5

41

1QT-45-20SP

M45X2

R1.1/4"11

28.5

25.5

68

46
